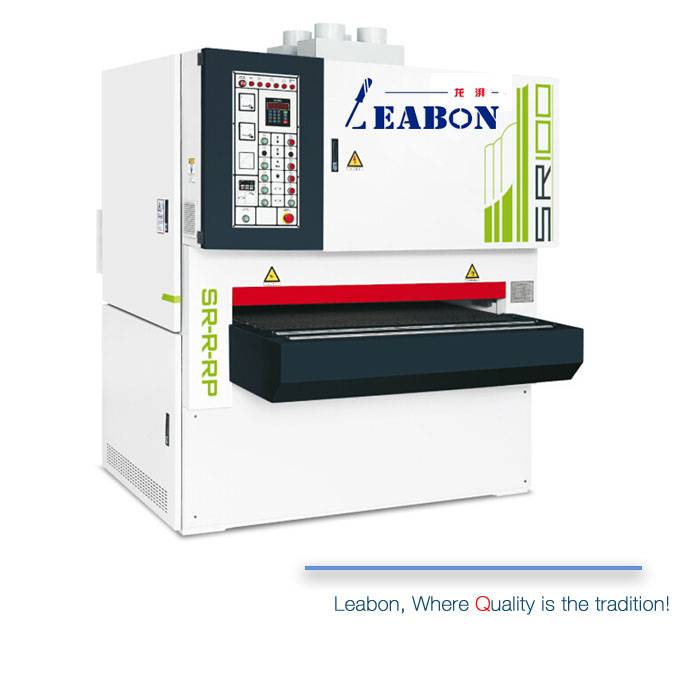

3 Drums Woodworking Thickness Sander Machine SR-R-RP1300

SR-R-RP1000-1300-thickness-sander-machine-1

It’s a heavy duty sanding machine with 3 drums and Belt Grinding function, thus it’s ideal for sanding and polishing high surface requirement wood. As well It’s also good for hard solid wood, fine wood, plywood etc.material panels, doors, furniture big thickness sanding and polishing sanding work.

Thickness Sander Machine SR-R-RP1300 is used for the thickness even and precise sanding work for MDF, plywood and particle board etc. Our sanding structure use drum style, so it’s small deformation with good vibration reduce affection. Even more, the shortest wood length above 400mm is workable, as well as 1300mm width.

Enquiry

Schneider-Electrical-Parts-of-wood-sanding-machine

Branded Electrical Parts

The electrical parts use Schneider Brand or SIEMENS Brand.

Durable Spindle

Main spindle of the equipment use Japan NSK and Sino-Japan manufactured TR bearing.

Heavy Duty 3 Rollers Structure

Sanding paper swing controlled by Omran photoelectric.

Drum Sander Conveyor

Conveyor use marble material, its shape won’t be changed because of temperature. Precision and grinding duration is higher than steel conveyor.

3 Drums Woodworking Thickness Sander Machine SR-R-RP1300 Features

Work piece thickness displayed by micro-computer button type thickness dis-player, precise and durable.
Sanding paper swing controlled by air power, swing is smooth and even.
Front and back double emergency knob, can control the machine to urgently stop within 3-5 Seconds.
Faults Display fitted (sanding paper right and left deviation, inadequate air pressure, emergency knob, and over thickness work piece). It’s easy to judge basic equipment trouble. Faults emergency stop adopts automatically descend protection facility, thus the panel surface won’t be damaged from emergency stop.
Use branded conveyor, grinding duration is 3-5 times as ordinary conveyor.
Conveyor fit with automatic centering facility.
Conveyor speed adjusted by frequency controller, easy adjusting. It can be adjusted as per the work piece in processing to improve sanding quality.
Sanding paper swing controlled by Omran photoelectric.
1st group sanding roller use 240mm diameter eccentric steel thickness roller, high smoothness, heavy sanding quantity; 2nd group roller use 210mm diameter, 70 shore hardness thickness roller and fit with ex-tractable polishing pad.
Conveyor use T shape screw pole craft, high precision.
Main motor automatically star triangle(Less pressure) start.
Main spindle of the equipment use Japan NSK and Sino-Japan manufactured TR bearing.
The electrical parts use Schneider Brand .
Conveyor use marble material, its shape won’t be changed because of temperature. Precision and grinding duration is higher than steel conveyor.

MODEL	SR-RP1300	SR-R-P1000	SR-R-P1300	SR-RP1000
Shortest length	≤600mm	≤380mm	≤450mm	≤440mm
Processing thickness	2.5-100mm	2-100mm	3-100mm	2.5-100mm
First sand frame motor power	20kw(37,45)	22kw(30)	30kw(37,45)	22kw(30)
Second sand frame motor power	22kw	18.5kw(22,15)	18.5kw(30,22)	11kw(18.5)
Third sand frame motor power	/	11kw	15kw	/
Transmission motor power	2.2kw(4)	1.5kw(3)	4kw	1.5kw(2)
Lift motor pwer	0.37kw	0.37kw	0.37kw	0.37kw
Dusting brush motor power	0.37kw	0.37kw	0.37kw	0.37kw
Belt size	2200*1330mm	2200*1020mm	2200*130mm	2200*1020mm
Working pressure	0.4-0.6mpa	0.4-0.6mpa	0.4-0.6mpa	0.4-0.6mpa
The first line speed of sand	22m/s	22m/s	22m/s	22m/s
Second sand line s[eed	18m/s	22m/s	22m/s	18m/s
Third sand line speed	/	11m/s	11m/s	/
Vacuum air volume	8000m³/h	8000m³/h	15000m³/h	5000m³/h
