Applications:

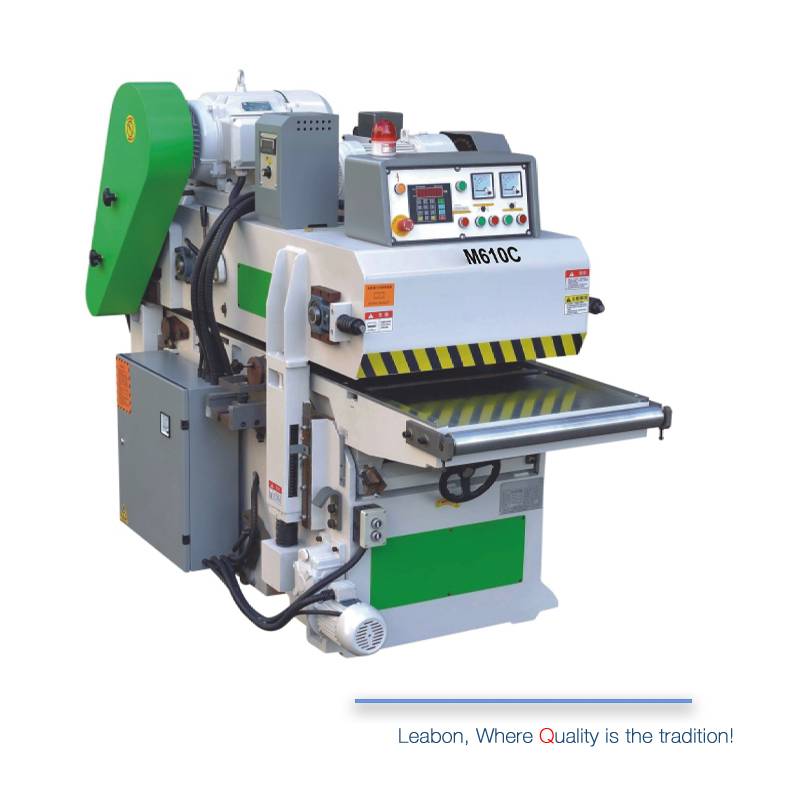

M610C double side planer can simultaneously cut two planes opposite to the small-diameter wood while achieving the same thickness and smooth veneer.
Features:
- Piano key type pressure mechanism with safety guard for maximum safety.
- Pressure pieces can be individually adjusted.
- Taiwan Shilin Inverter for adjusting speed. Fast and smooth planing.
- Ruggedly constructed machine frame gives superior operation stability.
- Large, heavy table and base for solid support of stock. Table surface is precision ground.
- Rugged, 3-knife cutterhead is precision ground and dynamically balanced for smooth cutting.
- Anti-kickback fingers provided at Infeed side prevent stock kickback.
- Front and rear table rollers provide added smoothness of stock feeding.
![Taiwan spiral cutter](https://www.lbmachinery.com/wp-content/uploads/2022/06/Taiwan-spiral-cutter.jpg)
Taiwan heavy cut 6PCS spiral cutter
![maintenance free reducer](https://www.lbmachinery.com/wp-content/uploads/2022/06/maintenance-free-reducer.jpg)
Use maintenance-free reducer
![short material feeding guide](https://www.lbmachinery.com/wp-content/uploads/2022/06/short-material-feeding-guide.jpg)
Min. processing length of short material guide is 150mm
![Inverter speed control](https://www.lbmachinery.com/wp-content/uploads/2022/06/Inverter-speed-control.jpg)
Feeding adopts frequency adjustment, the feeding speed can be adjusted according to the hardness of wood.
![proximty sensor](https://www.lbmachinery.com/wp-content/uploads/2022/06/proximty-sensor.jpg)
The proximity sensor for thickness display is used to control the motor and stop by inspecting rotation circles of motor to ensure adjustment of precision.
![imported digital display](https://www.lbmachinery.com/wp-content/uploads/2022/06/imported-digital-display.jpg)
The product is provided with imported digital display device. which can be operated directly to processing thickness from operating panel with the accuracy up to 0.05mm;besides, upper and lower planning motor is provided with ammeter for visual observing if it is over loaded while working.
