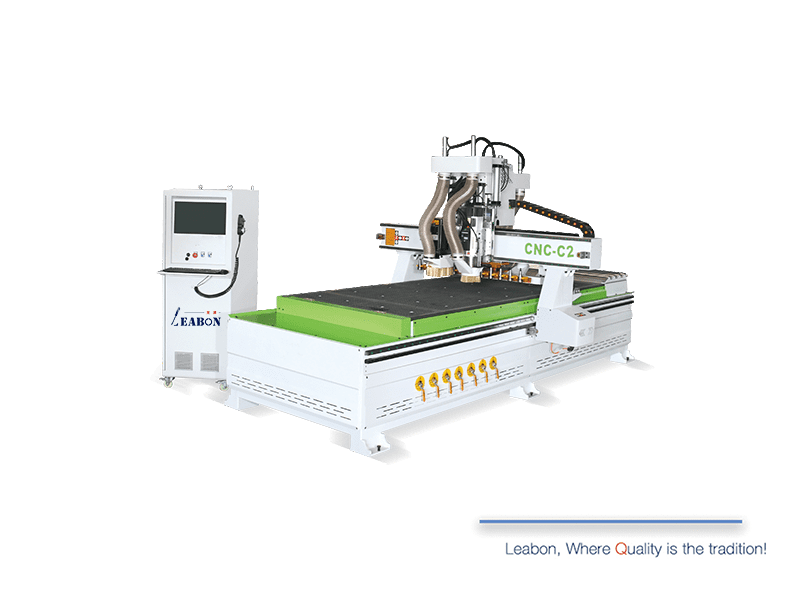

Cutting machine Features
1.The frame after fire treatment, increase its hardness and avoid to deformation
2. Individual machine with WEIHONG system shall be adopted for convenient and safety operation
3. Adopt the 6kw lincs motor with high and sufficient power.
4. Taiwan PMI guide rail 3.0 has high precision and good antirust function throught by Automatic pump oil systemm
5. .The machine is capable of automatic hight adjustment to maintain constant focal length and stable cutting quality.
6. Vacuum adsorption of water tank can increase the adsorption strength, cutting panner stablely, It’s important to avoid vibration for processing.
7.Equipped with professional cabinet door software, software with hundreds of kinds of portrait material, not need to draw, just enter the customer’s custom size and quantity, software automatically optimize typesetting, generate processing procedures,is so easy to use and less error rate.
A brand new way
Screw Bearing
•Taiwan Dinghan
High-speed and high-precision angular contact bearings, with strong load bearing capacity, can work at higher speeds
•The machine tool is equipped with an emergency stop button, and each axis of the equipment has double travel limits, including contact limit switches and hard limit mode for travel end limit protection
• Install guardrails at both ends of the machine to provide more security
Stable Machine Structure
•The table top adopts welded square structure, strong high rigidity welding, special stress relief treatment, high temperature tempering at 600 degrees → vibration relief stress → 8m x 3.6m imported pentahedron machining center (completed by one clamping) → quality Reliable and precise
• The sturdy beams and columns are constructed by high rigidity welding, tempered at 600 degrees, and treated with special stress relief, which ensures the best structural rigidity and stability of the machine and is durable and not easy to deform. Maintain good mechanical accuracy and stability and precision when moving quickly
A brand new way
PRODUCT DETAILS
CNC System
•Taiwan Baoyuan
Servo System
•Morton Servo
Drive Mode:
•Borch Rack, Germany
•Medium and large reducer
High-flexible high-speed cables and drag chains
•Highly flexible and oil-resistant cable, good mechanical properties such as bending resistance, and flame retardant;
•Highly flexible special alloy, and layered with short pitch
• A stomach type strong extrusion molding, high flexibility special shielded cable made of alloy wire
Switches
•Schneider
Sliding lubrication method: computer automatic oil supply
• All ball screw, nut pair and linear guide parts are lubricated by automatic lubrication system, no manual oiling is required, and all lubricating parts are lubricated regularly and quantitatively, which is more convenient for maintenance and maintenance.
