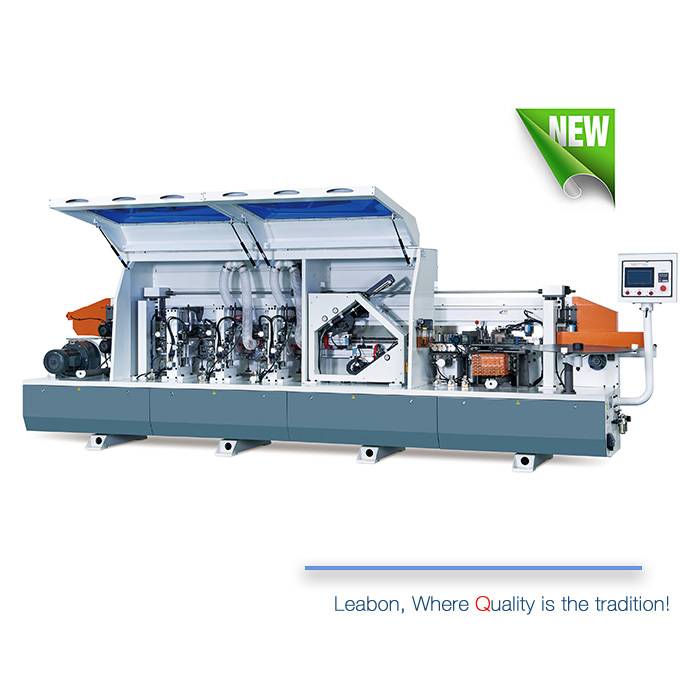

High Speed Edge Banding Machine T800

High speed edge banding machine is widely used in office furniture and home furniture industry. It can band pvc, veneer, acrylic etc. tapes to office table, kitchen cabinet and wardrobe for instance furniture products. For mass production without corner trim requirement (such as thin tape less than 1.5mm thickness), in other word, this model T800 is one ideal selection with max. 25m/min. production speed.

T800 High Speed Edge Banding Machine Functions: Gluing / End Trim / Rough Trim/Fine Trim / Scraping / Buffing/Spray Cleaning

Four our other panel processing machinery, plz check the link.

Enquiry

Description
Video

High Speed Edge Banding Machine T800 Main Features

1. Our high speed edge banding machine T800 uses Taiwan Delta frequency controller and touch screen, in the same vein insured the duration and precision of our machine.
2. PLC use Taiwan Delta brand, air cylinder use SCM from Japan, Airtac liner track, Honeywell limitation switch,. In conclusion, all key parts we choose market tested best brands to try to guarantee our edgebander performance and let our customers can enjoy to use our machines.
3. Independent electric lift system, simple and convenient.
4. Precise encoder control is high speed.
5. Special polishing structure, the motor angle can be adjusted universally, so that the PVC/Acrylic/ABS tape can be polished to the best condition.
6.The glue spray cleaning system is optional and can remove glue and dirt from MDF/Wood very well during the edge banding process.
7. With such powerful functions and high efficiency, our PVC edge banding machines are very competitively priced.
In conclusion functions: Gluing / End Trim / Rough Trim/Fine Trim / Scraping / Buffing/ Spray Cleaning

High Speed Edge Banding Machine T800

Our shared future

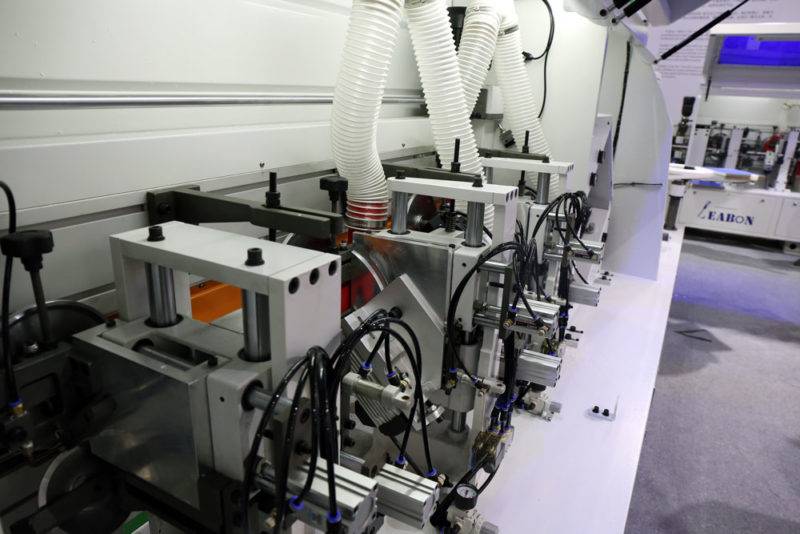

T800 Edge Banding Machine in CIFF 2018 Guangzhou

High Speed End Cutting

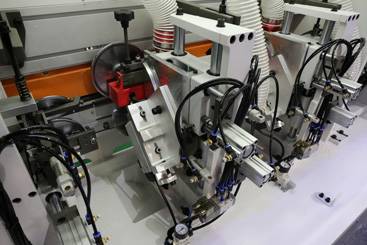

Pneumatic Tape Switch

functions introduction

Equipped with double diamond blades, remove the possible waving texture on edge to achieve better edge banding affection.

End trim running through precise liner track, automatically tracked with mould and fast cut with high frequency high speed motor, guaranteed the plain and complete of cutting side.

Click edit button to change this text.

PRE-MILLING AND END TRIM

The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly.

The gluing equipment adopts a special structure, which distributes the glue evenly on the tape panel and the tape to ensure stronger adhesion.

Buffing and Gluing

Fine and rough trim facilities are used to remove the extra material on band, it adopts mould automatically track and high frequency high speed motor, ensure the plain and smooth of work piece top and bottom parts.

Scraping units used to remove the texture which might happened during trim processing, guarantee the band to be smooth and plain.

Fine Trim / Rough Trim and Scrapping
