Log Frame Sawing Machine

Log Frame Sawing Machine

Because the production process is simple, easy to operate, and easy to realize continuous production and automation, it is widely used, especially in Sweden, Finland and Norway in Northern Europe, where the frame saw machine is the main saw machine. Countries such as the former Soviet Union and Eastern Europe, such as Poland and the Czech Republic, have always used frame saw machines as the main equipment in the timber industry. After the 1970s, Sweden, Finland and other countries carried out a series of technical transformations on traditional frame saw machines, such as increasing the spindle speed, increasing the feed speed, increasing the stroke of the saw frame, adopting hydraulic saw blade tensioning and stepless speed change, and improving Technical measures such as the degree of automation of the frame saw and its auxiliary operations have greatly improved the processing accuracy, production efficiency and yield of the frame saw.

Enquiry

Category: Saw Cutting Series Tag: Gang Saw Machine

Description

Leabon Log Frame Sawing Machine Main Features:

1. Within the range of sawing, multiple saw blades can be installed according to the thickness of the processed board, and multiple boards with different thicknesses can be sawed at one time
2. The tension of the saw blade is good, the sawn timber has high precision and good surface quality
3. Because multiple positioning, clamping, side feed and other operating procedures are avoided, the auxiliary time is shortened, and there is no empty stroke, so the production efficiency is high
4. The frame saw machine has low labor intensity and good safety performance, and does not require high technical level of operators
5. The production process is simple, the floor area is small, and the investment cost is saved

It’s time to discover the best food for you & the planet.

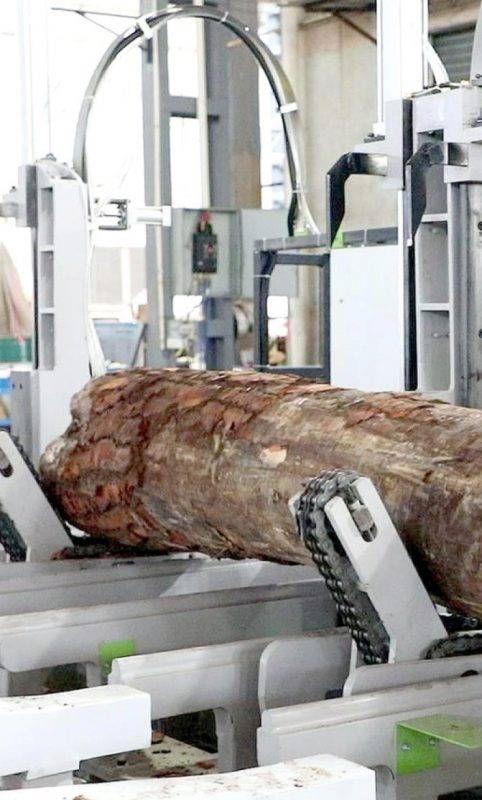

The connecting rod mechanism drives the saw frame to reciprocate up and down or left and right, so that multiple saw blades mounted on the saw frame perform longitudinal sawing of logs or wood.
