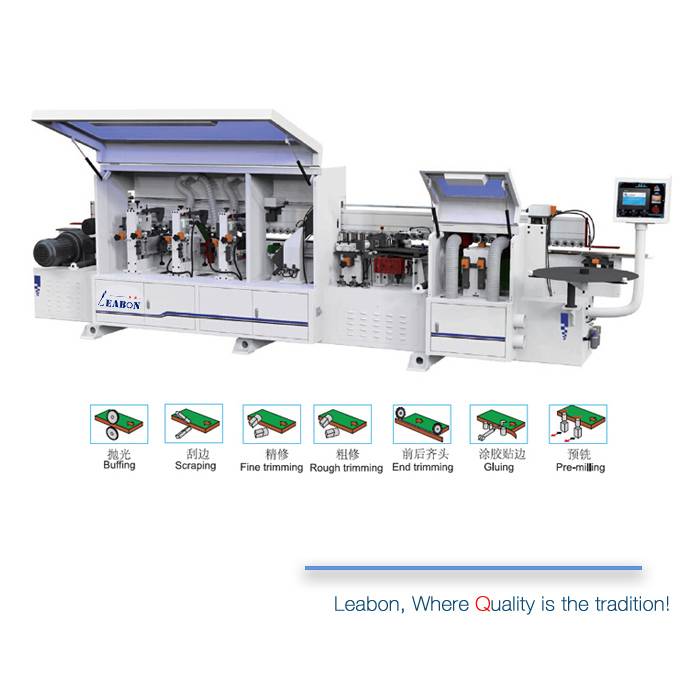

T600Y China Edge Banding Machine

China Edge Banding Machine T-600Y

T-600Y has additional functions such as double trim and pre milling, it’s good for wood, MDF, plywood edge band work. The edge bander material can be PVC, Acrylic and ABS. Wood and veneer belt is also optional!

T600Y China Edge Banding Machine Functions: Pre-milling / Gluing / End Cutting/ Rough Trim / Fine Trim / Scraping / Buffing

Enquiry

Description
Video

T600Y China Edge Banding Machine Main Features:

1. Taiwan Delta frequency controller, insured the duration and precision of our china made edge banding machine.

2. Taiwan Delta use LG brand, air cylinder use Airtac from Taiwan, SMC liner track, Honeywell limitation switch, all key parts we choose market tested best brands to try to guarantee our machine performance and let our customers enjoy to use our machines, which guarantee our products stand out from China edge banding machine industry.

3. Independent lifting up and down system, simple and convenient.

4. Precise encoder control, high speed.

5. Special polishing structure, motor angle can be universal adjusted, make the PVC/Acrylic/ABS band polishing and buffing to the best.

6. Glue spray clean system is optional, it’s good to remove the glue and dirty on MDF/Wood during edge banding process.

7. PUR edge band function is optional to give you more durable, no gap banding experience!

8. Veneer/wood edge band is optional to be installed!

Edge Banding Machine T-600Y

Our shared future

Edge banding machine in the show

Automatic band change edge banding machine

Automatic belt changing and edge banding machine

functions introduction

Equipped with double diamond blades, remove the possible waving texture on edge to achieve better edge banding affection.

End trim running through precise liner track, automatically tracked with mould and fast cut with high frequency high speed motor, guaranteed the plain and complete of cutting side.

Click edit button to change this text.

PRE-MILLING AND END TRIM

The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly.

The gluing equipment adopts a special structure to distribute the glue evenly on the tape panel and the tape to ensure a stronger adhesion.

Buffing and Gluing

Fine and rough trim facilities are used to remove the extra material on band, it adopts mould automatically track and high frequency high speed motor, ensure the plain and smooth of work piece top and bottom parts.

Scraping units used to remove the texture which might happened during trim processing, guarantee the band to be smooth and plain.

Fine Trim / Rough Trim and Scrapping
